Filtration Cartridges and Housings

Comprehensive range of filtration cartridges and housings for all industrial and commercial water treatment applications.

Filtration Cartridges and Housings

Available Cartridges

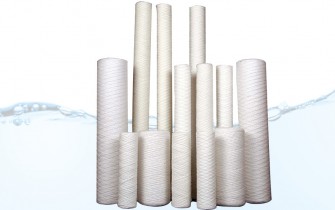

String Wound Depth Filter Cartridge

Micron: 0.5, 1, 5, 10, 25, 50

Configuration: Std Dia 2.5"x10", 20" and 40" | Jumbo - 4"x10" & 20"

Flow Rate: Std 16 LPM and Jumbo 50 LPM at 2.5 bar

Spun PP Depth Filter Cartridge

Micron: 0.5, 1, 5, 10, 25, 50

Configuration: Std Dia 2.5"x10", 20", 30" and 40" | Jumbo - 4"x10" & 20"

Flow Rate: Std 16 LPM and Jumbo 50 LPM at 2.5 bar

High Efficiency Pleated PP Filter Cartridge

Micron: 0.2, 0.45, 1, 5, 10, 25

Media: PP, PES, PTFE, Nylon

Lengths: 5, 9, 10, 20, 30, 40 inches

Grooved Spun PP Depth Filter Cartridge

Micron: 0.5, 1, 5, 10

Configuration: Std Dia 2.5"x10", 20", 30"

Flow Rate: Std 16 LPM at 2.5 bar

Nominal Pleated PP Filter Cartridge

Micron: 0.5, 1, 5, 10, 25, 50

Configuration: Std Dia 2.5"x10", 20", 30" and 40" | Jumbo - 4"x10" & 20"

Flow Rate: Std 16 LPM and Jumbo 50 LPM at 2.5 bar

SS Filter Cartridge

Micron: 5, 10, 15, 25, 40, 50, 80, 100 um

Configuration: Std Dia 2.5"x10", 20", 30" & 40", Jumbo 4"x10", 20", 30" & 40"

Flow Rate: Std 30 LPM and Jumbo 50 LPM at 2.5 bar

Activated Carbon Filter Cartridge

Micron: 5 um

Configuration: Std Dia 2.5"x10" & 20" | Jumbo 4.5"x10" & 20"

Flow Rate: 16 LPM for Std 10" and 30 LPM for Jumbo 10"

Plastic Filter Housings

Micron: 1/2", 3/4", 1" and 1.5"

Suitable for Single 2.5"x10", 20" and Jumbo 4.5"x10" cartridges

Filter Bags

Micron: 1, 5, 10, 25, 50, 75, 100 um

Configuration: BP: Dia 4"x10" & 20" & RSB: Dia 7"x17" & 32"

Flow Rate: 100 LPM for 10 BP Series and 200 LPM for 17" RSB at 2.5 bar

Bag Filter Assembly

Micron: 1.5" BSP F

Configuration: Std Dia 4.5"x10" & 20" with 1.5" BSP female threaded connection

Flow Rate: 100 LPM for raw water at 2.5 bar

Washable Net Cartridges

Micron: 30, 80

Configuration: Std Dia 2.5"x10" & Jumbo 4.5"x10" & 20"

Flow Rate: Std 20 LPM and Jumbo 40 LPM at 2.5 bar
